Lincoln Electric

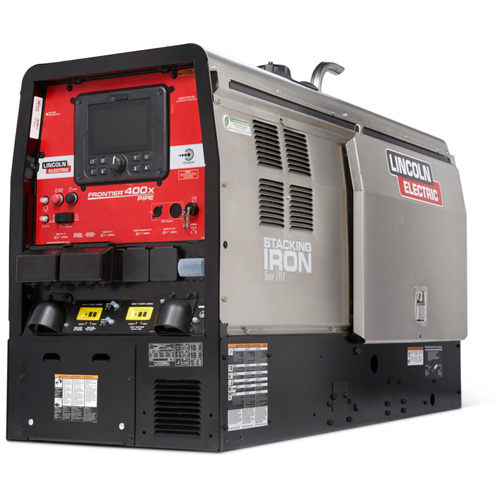

Frontier® 400X Pipe Advanced Engine-Driven Welder/Generator

Model: TTV753

Mfr. No.: K3485-1

  • Frontier® 400X Pipe Advanced Engine-Driven Welder/Generator Absolute Business Supply

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Discontinued

Phase Input Power

1 Ph/3 Ph

Hertz Input Power

60 Hz

Dimensions (H X W X D)

35.9" x 25.3" x 60" (913 mm x 643 mm x 1524 mm)

Weight

1035 lbs. (469 kg)

IEC Rating

325A / 33V / 100% @ 104°F (40°C)

Max. Rating

400A / 26V / 60% @ 104°F (40°C)

Output Range By Mode

Stick/Pipe (SMAW): 30 – 400 Amps, CV-Wire (GMAW, FCAW-S, FCAW-G): 10 – 45 Volts, DC TIG (GTAW): 5 – 400 Amps, Arc Gouging (CAC-A): 60 – 400 Amps

Open Circuit Voltage

71 Peak OCV at 1800 RPM

Rated Gouging Carbon Diameter

5/16" (8 mm)

Communication Technology

CrossLinc

Engine Horsepower

24.7 hp (18.4 kW)

  • Offers up to 400 amps (IEC rated at 325 amps) of welding current to tackle numerous welding and carbon arc gouging applications
  • Features optimized CC and CV modes, specialized modes to support mechanized and pulse welding, and a dedicated Pipe mode with DigFX™ technology to produce the iconic, smooth DC-style arc for downhill pipe welding
  • Provides up to 11 kW of continuous three-phase power to run industrial tools such as plasma cutters, pumps, or inverter welders
  • Bright, durable 7 in. digital user interface for unmatched machine control
  • Save and recall memories, receive maintenance reminders, and enable PIN authorization
  • Allows communication through a standard weld cable to enable voltage or current control at the arc without a control cable to help improve safety, quality, and productivity with less trips to the power source and reduced jobsite clutter
  • Built-in True Voltage Technology™ (TVT) compensates for voltage drop to further improve operations
  • Weld longer with a class-leading 20 US gal. (75.7 L) fuel tank and integrated Auto-Stop/Start feature, designed to prevent excessive idling to help save on fuel costs, avoid unnecessary engine wear, and extend time between required maintenance
  • Powered by a 24.7 hp, turbocharged Perkins® diesel engine to provide extremely smooth and quiet operation with excellent cold-weather starting and high altitude performance while meeting EPA Tier 4 Final compliance
  • Engineered tough to withstand harsh conditions and backed by trusted industry support and 3-year warranty
